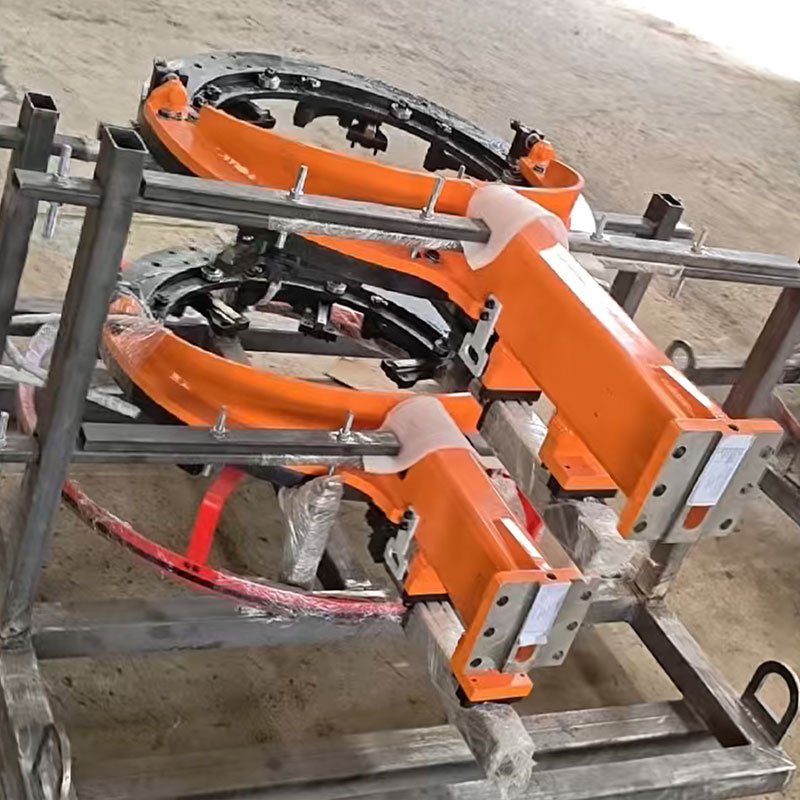

The curing press manipulator is the core intelligent conveying equipment that automates tire loading, placement, and unloading in tire vulcanization production lines, serving as the key actuating mechanism of modern fully automatic curing presses. It precisely feeds unvulcanized green tires (tire blanks) into the mold cavity and automatically removes the finished tires after the vulcanization process, replacing traditional manual loading/unloading operations and enabling fully automated, standardized vulcanization workflows.
Engineered for the high-temperature, high-frequency, continuous-operation conditions of tire curing workshops where load stability is critical, this manipulator delivers precise motion, smooth running, and uniform load distribution. It is fully compatible with single-mode and twin-mode hydraulic curing presses, effectively boosting vulcanization efficiency while reducing manual error — making it a core automation component of tire intelligent manufacturing lines.
Core Material & Manufacturing Process
The main frame is fabricated from high-strength, thickened carbon steel via welded construction, offering light overall weight, high rigidity, and deformation resistance with excellent load-bearing stability and structural fatigue resistance. Key motion joints, swing arms, and clamping sections are processed through precision forging and CNC finish machining, ensuring tight tolerance matching and minimal transmission clearance. The complete machine undergoes vibratory stress relief, anti-corrosion coating, and surface hardening/rust treatment, delivering resistance to high temperature, heavy dust, and corrosion for the hot, humid, oil-fume-laden environment of curing workshops.
The electrical control and mechanical transmission components are optimized for compatibility, resulting in a compact structure, responsive operation, and durable performance. Every unit is factory-tested with full-load commissioning, reciprocating motion testing, and precision calibration to ensure long-term stable operation.
Key Product Advantages
1. Precise Positioning for Consistent Cure Quality
Equipped with standardized stroke control and precision positioning, the manipulator achieves minimal loading alignment error, ensuring the green tire enters the mold centered. This effectively prevents quality defects such as tire eccentric wear, deformation, and uneven rubber edges caused by off-center loading, significantly improving finished-tire consistency and yield rate.
2. High Automation for Superior Production Efficiency
Fully automatic loading and unloading cycles eliminate frequent manual intervention, perfectly matching the high-frequency alternating production rhythm of curing presses. It substantially shortens the single-press curing cycle time and boosts the overall output capacity of the entire vulcanization line.
3. Smooth Operation & Low Failure Rate
Optimized mechanical transmission delivers soft cushioning, smooth start/stop with no vibration or impact, reducing mechanical wear and minimizing the risk of tire pinch or collision damage. The fatigue-resistant structural design supports 24-hour continuous operation with low maintenance cost and long service life.
4. Wide Compatibility & Easy Installation
Compatible with mainstream twin-mode hydraulic curing presses on the market, the manipulator features a modular, highly standardized structure for simple installation and quick commissioning. It adapts to both new production lines and retrofits of existing ones, with clamping stroke and motion parameters customizable to tire specifications.
Applications
Widely compatible with various tire curing press systems, suitable for the automated vulcanization of passenger car tires, truck tires, light truck tires, OTR (off-the-road) tires, and other specifications. Extensively used in large tire manufacturing plants and intelligent rubber product production lines, it is the core equipment for vulcanization automation upgrades, labor reduction, and standardized production — supporting non-standard customization and complete-machine retrofit.
